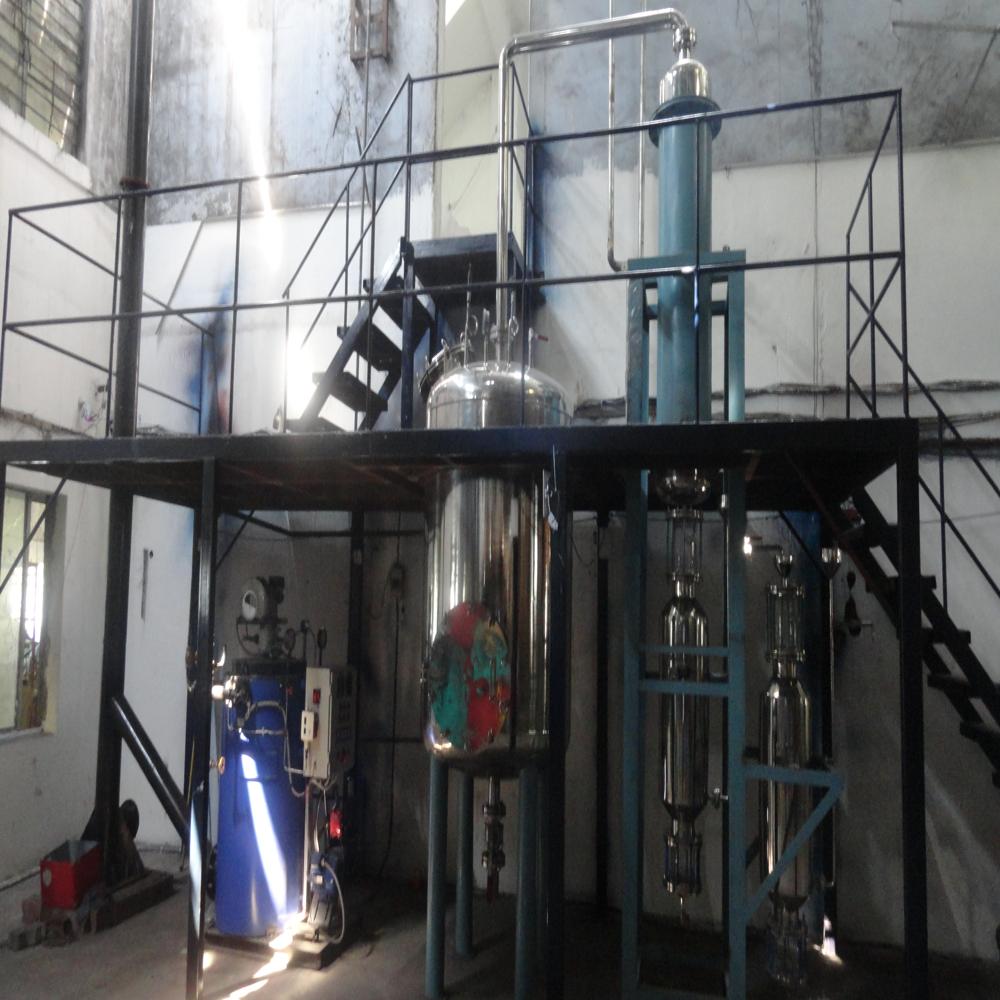

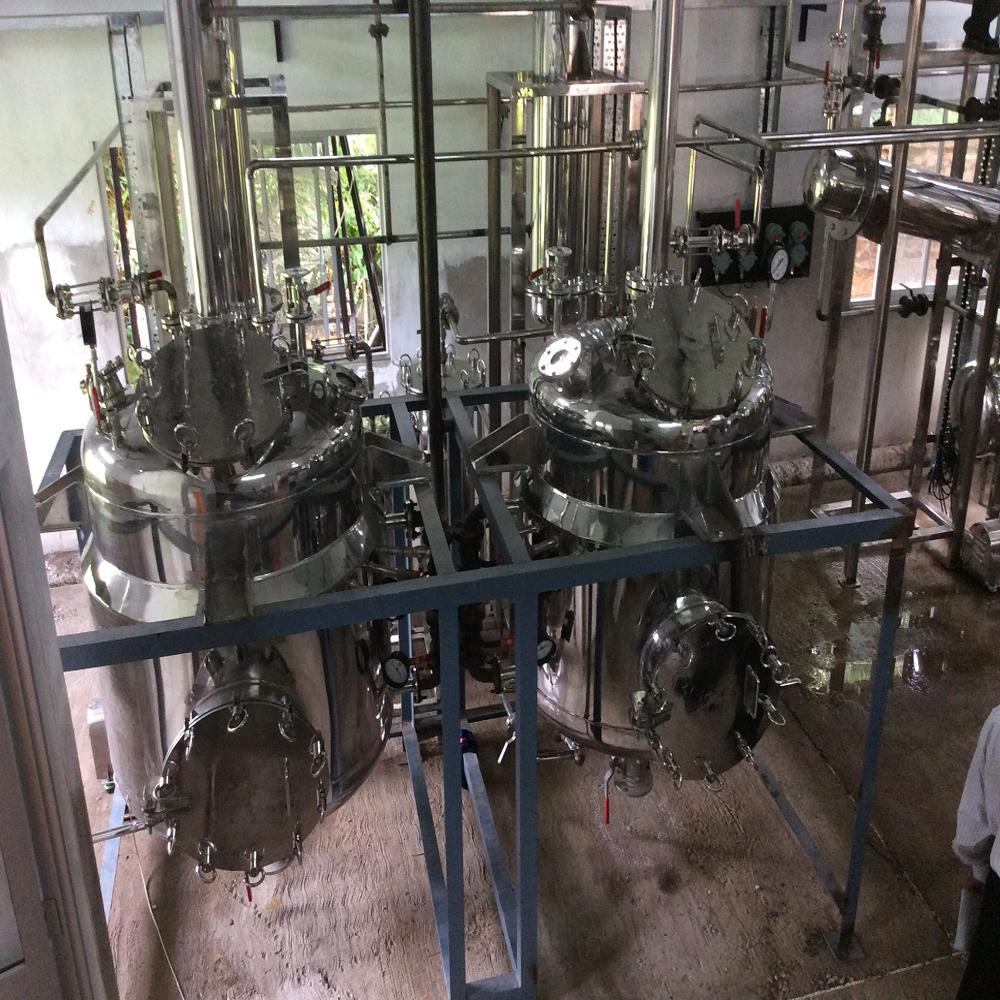

Ajwin Seed Oil Distillation Plant

Name: Ajwin Seed Oil Distillation Plant
Brand: BEST ENGINEERING TECHNOLOGIES
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ajwin Seed Oil Distillation Plant Specification

Accessories
Condenser, Receiver, Steam Generator, Platform, Stairs

Frequency
50/60 Hz

Installation Guideline
Foundation required, Electrical and Plumbing connections to be provided as per manual

Production Capacity
5 to 80 liters oil/hour (varies with size and type of seed)

Efficiency (%)
85-90%

Usage & Applications
Essential oil distillation, Ajwain/Carom seed oil extraction

Driven Type
Electric

Automation Grade
Semi Automatic / Fully Automatic Options

Model No
AJD-100 to AJD-1000 (varies as per batch size)

Temperature Range
Up to 180C

Motor Power
3 to 10 HP

Speed
Fixed/Variable (customized if required)

Type
Ajwin Seed Oil Distillation Plant

Material
Stainless Steel, Mild Steel

Computerized
No

Automatic Grade
Semi-Automatic / Automatic (customized options available)

Control System
PLC Based / Manual

Drive Type
Electric Motor

Voltage
220V/380V/415V (customized)

Power
10-30 kW (Depends on capacity and configuration)

Weight (kg)
Approx. 800-2200 kg (depends on model)

Dimension (L*W*H)
Customized as per client requirement / Typical: 4500 mm x 2300 mm x 4200 mm

Color
Metallic / Blue & Black (customized options available)

Capacity
100 to 1000 Kg/Batch (Depends on plant size)

Features
Corrosion resistant, Energy Efficient, Easy Installation, Hygienic Operation

Machine Type
Distillation cum Extraction plant

Surface Finish
Polished / Painted

Power Consumption
8 to 24 units/hour

Skid Mounted
Optional for Portable Setup

Operational Safety
Fitted with Pressure, Temperature & Safety Relief Valves

Air Ventilation System
Provided for Safe Operation

Steam Boiler Integration
Compatible with External Steam Boiler

Cleaning Access
Bottom Emptying Port with Quick Clean Access

Frame Construction
Heavy Duty ISMB Channel Platform

Service Requirement
Water, Steam, Electrical Connections

Manway
Top Mounted Manhole for Raw Material Feeding

Condensing Mechanism
Shell and Tube Water Cooled Condenser

Batch/Continuous Operation
Batch Type

Operating Pressure
Atmospheric to Low Pressure (Customized as per product)

Noise Level
<75 dB(A)

Pipeline Material
SS 304/SS 316 with Food Grade Gaskets

About Ajwin Seed Oil Distillation Plant

Order today to experience the inestimable benefits of our hot-selling Ajwin Seed Oil Distillation Plant, designed with first-string craftsmanship for remarkable performance. This cost-effective solution caters to both small and large-scale essential oil extraction from Ajwain (Carom) seeds and various other seeds. Options include steam or electric heating, and both steam and hydro distillation methods, delivering flexibility and outstanding results. Safety is never compromised with pressure relief valves, emergency stops, and multiple control configurations. Easy installation, hygienic operation, energy efficiency, and robust after-sales support ensure seamless processing and long-lasting value.

Ajwin Seed Oil Distillation Plant: Specific & General Applications

This versatile plant is engineered specifically for the efficient extraction of essential oils from Ajwain seeds, yet it is equally adept at processing a wide variety of other essential oil seeds. Used as a distillation cum extraction plant, it is ideal for both general and specialized applications in the food, fragrance, and pharmaceutical industries. Its robust design and customizable operation suit varied industrial requirements, ensuring consistency in both sample and batch-style production environments.

Domestic Market Reach & Seamless Order Experience

The Ajwin Seed Oil Distillation Plant caters to a wide main domestic market, supported by quick dispatch and streamlined order processing for customer convenience. Flexible payment terms ensure a smooth purchasing experience, while competitive outlay options deliver cost-effectiveness without compromising quality. Delivery time ranges from 10 to 15 days, allowing for swift setup and deployment. Our commitment as exporter, manufacturer, and supplier guarantees reliability and market reach across the country.

FAQ's of Ajwin Seed Oil Distillation Plant:

Q: How does the Ajwin Seed Oil Distillation Plant operate?

A: The plant operates using either steam or electric heating and employs steam or hydro distillation methods. The process involves feeding Ajwain or other essential oil seeds, distilling them using heated steam, condensing the vapors with a water-cooled system, and collecting the extracted oil efficiently.

Q: What types of seeds can be processed in this distillation plant?

A: While optimized for Ajwain (Carom) seeds, the plant is highly versatile and suitable for distilling essential oils from a variety of other seeds such as cumin, fennel, and more, offering adaptability to numerous industry needs.

Q: Where can the plant be installed and what are the utility requirements?

A: The plant requires a floor space of 25-40 sq.m, depending on capacity. Utilities needed include steam, water, and electric power, with proper foundation, electrical, and plumbing connections as outlined in the installation guidelines.

Q: What is the typical batch time and production capacity?

A: Batch times range from 3 to 6 hours, based on feed quantity, with production capacity varying between 5 and 80 liters of oil per hour, depending on the plant's model and feedstock type.

Q: When will my order be dispatched and how long will installation take?

A: Quick dispatch is standard practice, with the plant typically delivered in 10-15 days. Installation, commissioning, and training are all provided to ensure hassle-free setup and operation.

Q: What makes this distillation plant a cost-effective investment?

A: The plant's energy-efficient design, robust safety features, customizable automation, and versatile processing capability collectively ensure a substantial return on outlay, making it a reliable and economical choice for essential oil extraction.
