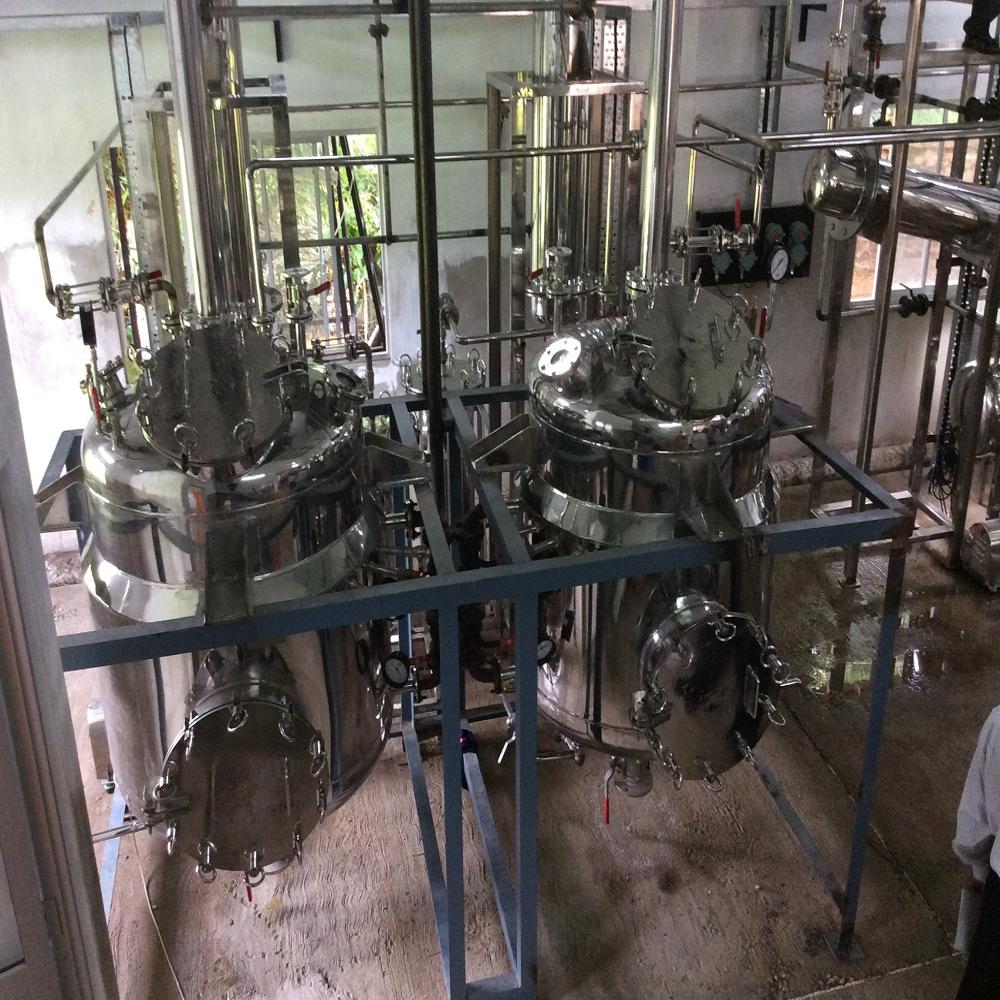

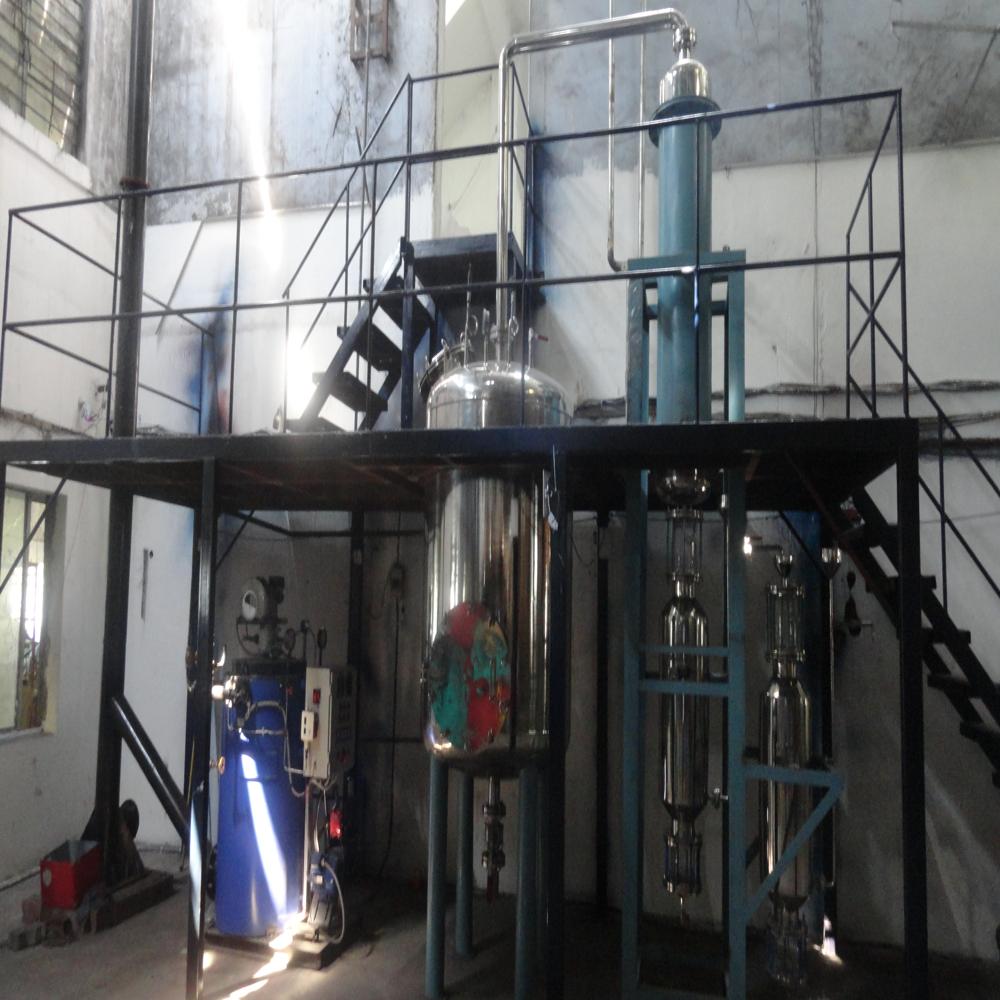

Ginger Oil Distillation Plant

Name: Ginger Oil Distillation Plant
Brand: BEST ENGINEERING TECHNOLOGIES
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ginger Oil Distillation Plant Specification

Automation Grade
Semi-Automatic

Model No
GODP-100/500

Installation Guideline
Erection and commissioning support available

Production Capacity
10 to 50 Liters Oil per day (depends on input)

Driven Type
Electric Motor

Motor Power
3 HP to 7.5 HP

Usage & Applications
Extraction of Ginger Oil for food, medicinal, aromatherapy, and cosmetics

Frequency
50 Hz

Speed
Fixed

Efficiency (%)
Greater than 90%

Accessories
Steam Generator, Condenser, Separator, Control Panel

Temperature Range
Up to 110C

Type
Ginger Oil Distillation Plant

Material
Stainless Steel, Mild Steel Frame

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual Control with Optional Digital Temperature Monitoring

Drive Type
Electric

Voltage
415 V

Power
7.5 kW

Weight (kg)
Approx. 1200-1800 kg (varies by capacity)

Dimension (L*W*H)
4800 mm x 2000 mm x 5500 mm (customizable)

Color
Steel, Blue and Black Coated

Capacity
100 to 500 kg per batch

Features
High Yield Extraction, Robust Design, Corrosion Resistant, Easy Maintenance, Efficient Condenser

Surface Finish
Polished Stainless Steel, Painted Frame

Power Consumption
Low, energy-efficient design

Machine Type
Essential Oil Distillation Unit

Application Industry
Pharmaceutical, Food & Beverage, Cosmetic

Batch Time
4-6 Hours (Depending on Raw Material)

Utility Required
Electricity, Water, Steam

Oil Separation Method
Decanter or Separator

Floor Space Required (sq.ft.)
150-200 sq.ft. (Typical)

Noise Level
Low (<80 dB)

Steam Generator Type
Inbuilt/External

Working Principle
Steam Distillation

Operation Mode
Batch Mode

Service Support
Onsite Commissioning & Training

Discharge System
Manual or Pneumatic

Safety System
Overload Protection, Safety Valves

Cooling System
Water Cooled Condensers

About Ginger Oil Distillation Plant

Experience the trending innovation with our splendiferous Ginger Oil Distillation Plant, crafted for flawless performance and rare versatility. Utilizing a steam-jacketed heating method and a vertical cylindrical vessel, this semi-automatic batch-type unit ensures sublime high-yield extraction, operating safely with advanced pressure relief and interlock systems. Its robust, corrosion-resistant body combines polished stainless steel and a mild steel frame, offering reduced power consumption and low noise (<75 dB). Suitable for both fresh and dried ginger, this compact (<11 m2) plant delivers consistent, efficient results for food, medicinal, aromatherapy, and cosmetic industries.

Enhanced Features and Competitive Edge

Our Ginger Oil Distillation Plant stands out with extra features such as an efficient glass or stainless steel oil separator, closed-loop water circulation with a cooling tank, CIP cleaning system, and optional digital temperature monitoring. Its competitive advantage lies in high yield extraction (efficiency >90%), robust corrosion-resistant design, and ease of maintenance. Used extensively for extracting premium ginger oil, this unit is ideal for food processing, pharmaceuticals, aromatherapy products, and cosmetics manufacturing.

Sample Availability and Delivery Logistics

Dispatching top-notch sample units is possible for potential clients. We offer flexible FOB port options, ensuring smooth delivery to your location. Main domestic markets are serviced with prompt dispatch and practical delivery charges, according to region and order specifics. Samples and full units can be coordinated efficiently, backed by responsive after-sales service and step-by-step installation support. Trust our logistics for seamless procurement and quick commissioning of your Ginger Oil Distillation Plant.

FAQ's of Ginger Oil Distillation Plant:

Q: How does the steam jacketed heating method improve ginger oil extraction?

A: The steam jacketed heating method provides uniform, controlled heat to the raw ginger, enhancing oil yield and ensuring the extraction process remains both safe and energy-efficient.

Q: What are the main safety features equipped with this distillation plant?

A: This plant is equipped with a pressure relief valve, safety interlocks, and a CIP (clean-in-place) cleaning option, ensuring operator safety and reliable operation throughout each batch.

Q: Where can the Ginger Oil Distillation Plant be utilized?

A: It is suitable for industries ranging from food processing and pharmaceuticals to aromatherapy and cosmetics, providing versatile usage options for various scales of production.

Q: What is the process duration for one distillation batch?

A: Each batch typically requires 3 to 6 hours to complete, depending on the type and condition of the ginger used.

Q: How is maintenance managed for this distillation unit?

A: Maintenance is simplified with easy-access manual wash options and an integrated CIP system, designed for quick cleaning between batches and prolonged equipment life.

Q: What accessories are included with the plant?

A: The unit comes complete with a steam generator, condenser, oil separator, and control panel, providing a turnkey solution for ginger oil extraction.
