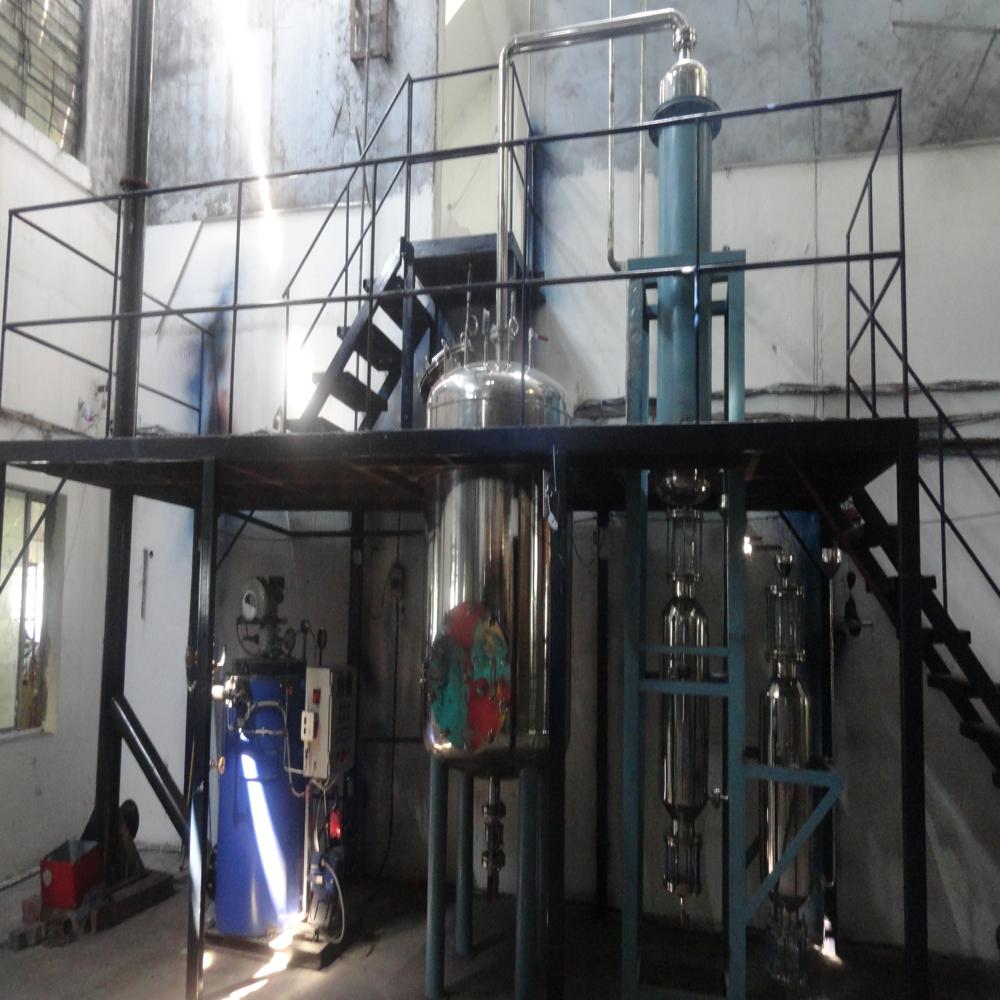

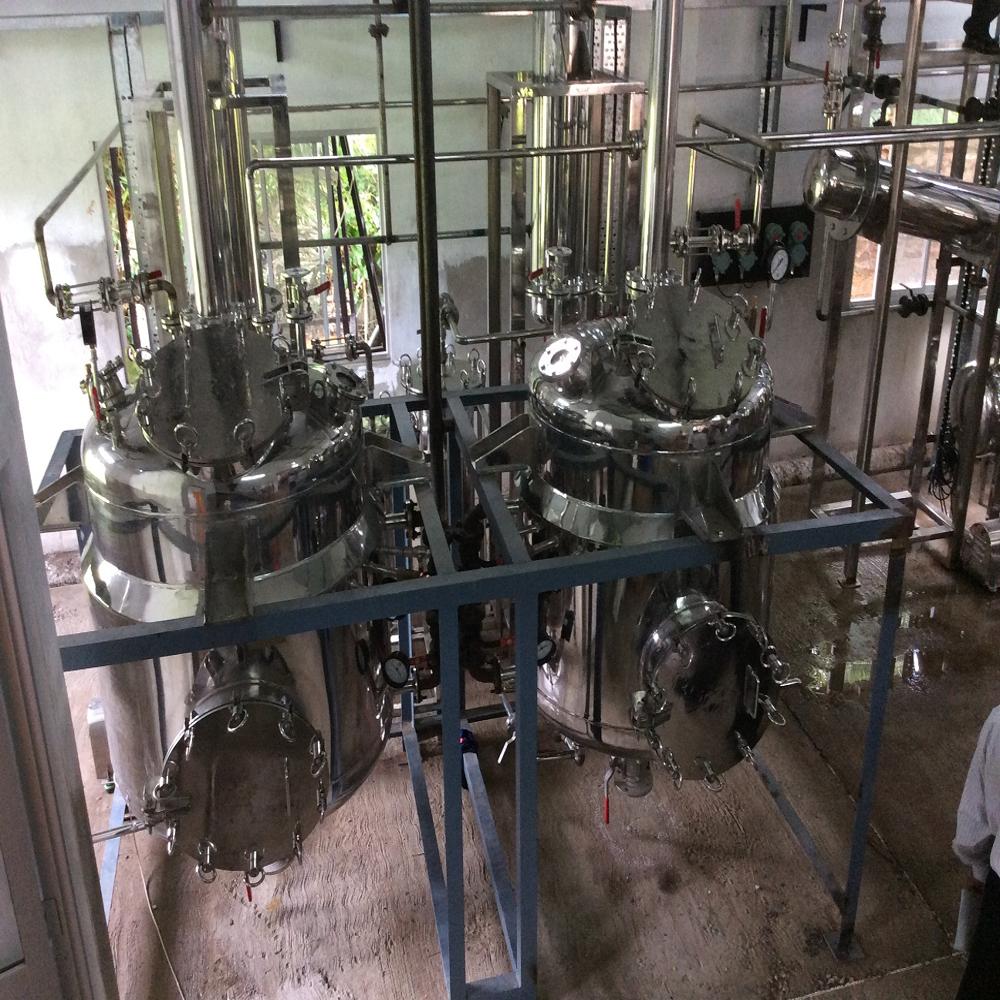

Peppermint Oil Distillation Plant

Name: Peppermint Oil Distillation Plant
Brand: BEST ENGINEERING TECHNOLOGIES
Price: 1300000.0 INR
Availability: InStock

Price 1300000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Peppermint Oil Distillation Plant Specification

Model No
Provided as per plant size

Usage & Applications
Steam distillation of peppermint oil, aromatic oil extraction, herbal distillation

Automation Grade
Automatic / Semi-Automatic

Motor Power
3-10 HP (Based on Capacity)

Accessories
Steam Boiler, Condenser Coils, Oil Separator, Pipelines, Control Panel

Production Capacity
Varies from 25 to 80 liters per batch

Driven Type
Electric

Speed
Variable (Depends on pump specification)

Efficiency (%)
Up to 95% oil recovery

Frequency
50/60 Hz

Installation Guideline
Requires solid foundation, provision for water & steam supply

Temperature Range
Up to 180C (Steam Temperature)

Type
Peppermint Oil Distillation Plant

Material
Stainless Steel & Mild Steel

Computerized
No

Automatic Grade
Semi Automatic / Automatic

Control System
PLC/Manual Control Panel

Drive Type
Electric Motor

Voltage
220V/380V/440V (Customizable)

Power
5-15 kW (Depending on Model)

Weight (kg)
1500-4500 kg (Model dependent)

Dimension (L*W*H)
Customized as per plant capacity (approx. 3.5m x 2.5m x 6m)

Color
Steel / Custom Color

Capacity
500 kg/day to 2000 kg/day (Batch Size)

Features
Robust Construction, Energy Efficient, Corrosion Resistant, Easy to Install, Low Maintenance

Machine Type
Oil Extraction & Distillation Equipment

Power Consumption
10-20 Units/Hr

Surface Finish
Polished/Matte as required

Separator Type
Glass or SS Oil Separator

Batch Time
3-5 Hours per Batch

Pressure Rating
Standard Atmospheric to 2 Bar

Safety Features
Emergency Pressure Release Valve, Automatic Shutoff Optional

Transportability
Modular - Skid Mounted

Cooling System
Water-Cooled Condenser

Noise Level
Low

Vessel Capacity
250 to 2000 Liters

Operation
Batch (Standard), Continuous Optional

Feedstock
Peppermint Leaves, Herbal Matter

About Peppermint Oil Distillation Plant

Experience breathtaking efficiency and eminent reliability with our Peppermint Oil Distillation Plant, engineered for maximum versatility and safety. Personalise your configuration with either shell & tube or spiral condensers, and choose between batch or continuous operation modes. This robust plant features a glorious modular skid-based design, customizable material thickness (4mm-10mm), and food-grade stainless steel for persistent corrosion resistance. Highlighted with features like low maintenance, easy installation, and energy efficiency, the plant assures up to 95% oil recovery. Try now and enjoy custom colors, intelligent control systems, and comprehensive operational training.

Highlighted Features & Commercial Utility

Our Peppermint Oil Distillation Plant stands out with robust construction, energy efficiency, and adaptable design. Suited for commercial-scale aromatic oil and herbal extractions, it processes herbs like peppermint, mentha, lemongrass, and more. Suitable for both batch and continuous operations, this pinnacle of oil extraction is ideal for pharmaceutical, fragrance, and essential oil industries. Specific usage includes steam distillation, hydro-distillation, and versatile processing, making the plant an eminent choice for high-yield commercial applications.

Payment Terms, Export Markets & Supply Capacity

Investment expenditure is tailored to plant size and customization options, with competitive asking prices transparently provided. Swift delivery is ensured via knock-down or fully assembled export-worthy packing. Our main export markets include Asia, Africa, the Middle East, and Europe, guaranteeing reliable international support. With a formidable supply ability, we ensure consistent output to meet commercial demands, making us a trusted supplier and exporter globally. Secure, flexible payment terms can be arranged upon request.

FAQ's of Peppermint Oil Distillation Plant:

Q: How can the Peppermint Oil Distillation Plant be personalised for my specific operational needs?

A: The plant can be customised with different condenser types, material thicknesses, automation levels, and capacities. Control systems, color, and batch/continuous operation configurations can all be tailored to your specific requirements.

Q: What is the main process used in this distillation plant?

A: The primary extraction method is steam distillation, though hydro-distillation is also possible. This ensures high-quality oil recovery while preserving the integrity and aroma of essential oils.

Q: Where is the ideal place to install this plant for optimal operation?

A: Indoor installation in a dust and water-protected environment is strongly recommended to maintain peak efficiency, safety, and equipment longevity.

Q: When can I expect delivery after placing an order?

A: Delivery timelines depend on plant size and level of customization, typically ranging from a few weeks to a few months. Export-worthy packing ensures safe and prompt shipment worldwide.

Q: What are the main benefits of using this distillation plant?

A: Key benefits include high oil recovery rates (up to 95%), robust and corrosion-resistant construction, minimal manpower requirements, energy efficiency, and straightforward maintenance routines.

Q: How is commercial usage supported through training and installation?

A: Comprehensive operational training is available onsite or remotely. Detailed installation guidelines and ongoing support facilitate smooth commissioning and long-term reliability.
