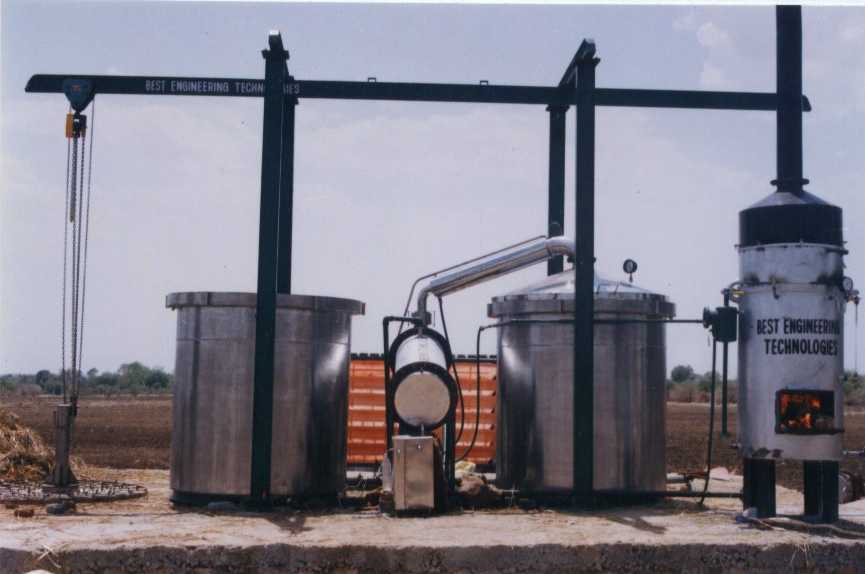

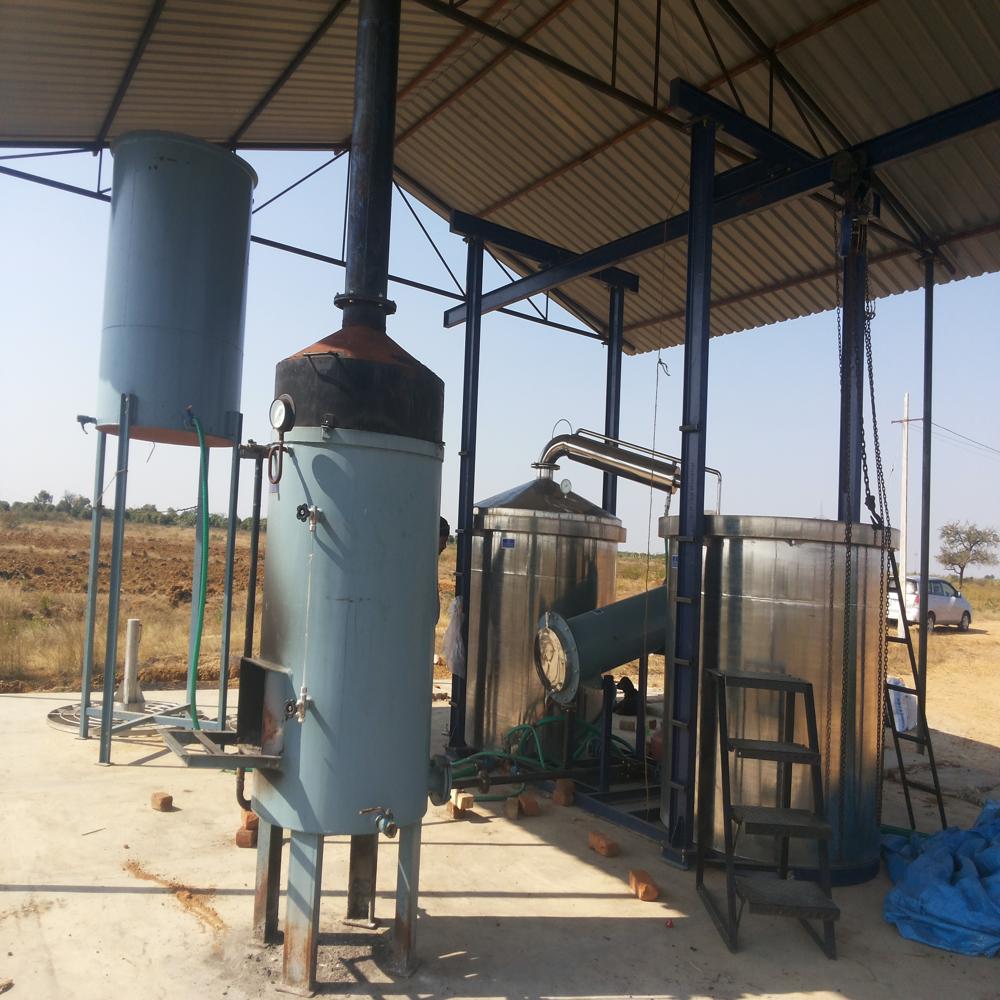

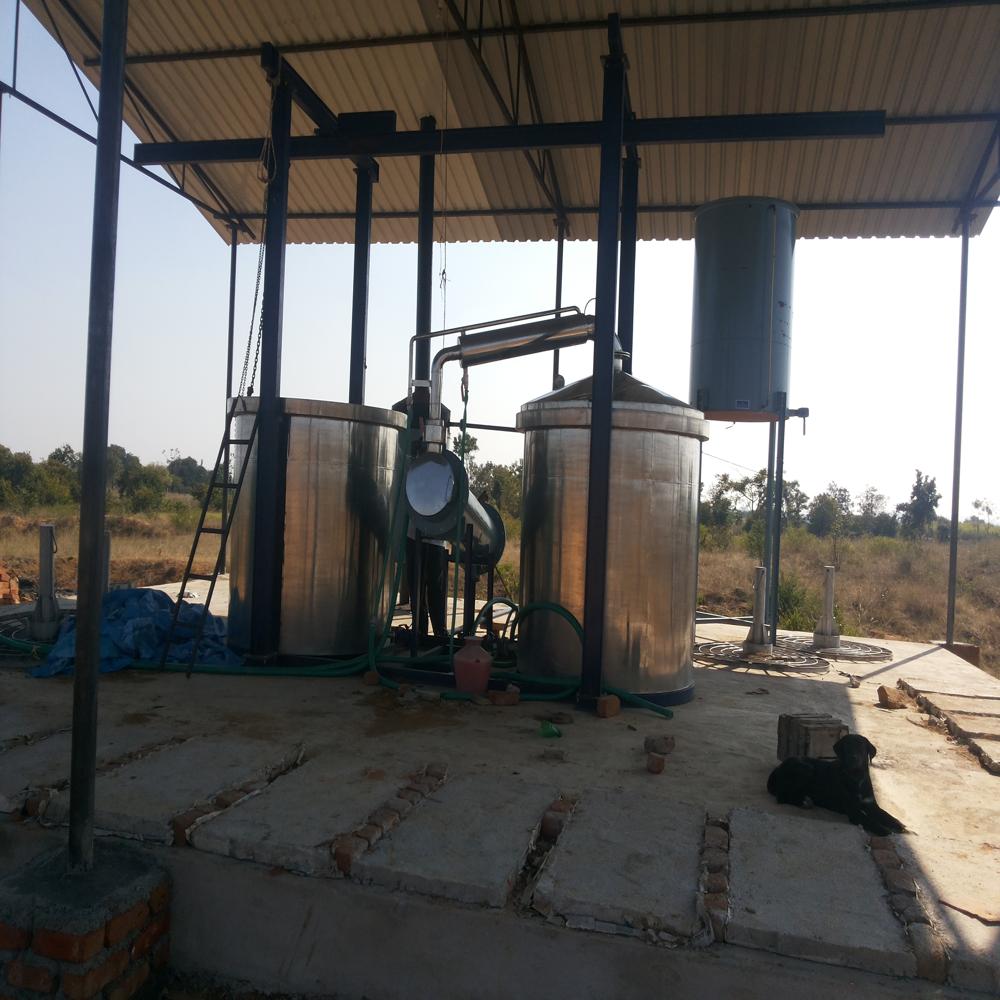

Nutmeg Oil Steam Distillation Plant

Get a Price/Quote

Nutmeg Oil Steam Distillation Plant Specification

Model No
NMSD-1000 (example; varies as per supplier)

Production Capacity
Varies 5-50 kg oil/day depending on input

Usage & Applications
Extraction of nutmeg essential oil from nutmeg seeds

Motor Power
5 HP

Temperature Range
60C - 120C

Driven Type
Electric

Speed
Variable, typically 20-30 RPM for agitation

Accessories
Condensers, Separator, Steam Generator, Pipes & Valves

Frequency
50/60 Hz

Automation Grade
Semi-Automatic

Efficiency (%)
Above 90%

Installation Guideline
Requires leveled foundation, water and electrical supply, basic civil work

Type
Nutmeg Oil Steam Distillation Plant

Material
Stainless Steel

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual / PLC based (optional)

Drive Type
Electric Motor

Voltage
380V / 415V

Power
5 to 10 kW (est.)

Weight (kg)
Approx. 1200-2000 kg (varies with capacity)

Dimension (L*W*H)
Customized as per requirement

Color
Metallic Silver

Capacity
100 to 2000 liters/batch (customized options available)

Features
Robust construction, corrosion resistance, energy efficient, easy to operate & maintain

Power Consumption
Approx. 8 kWh per batch

Machine Type
Fixed Batch Steam Distillation

Surface Finish
Polished Stainless Steel

Foundation Requirement
Concrete base with anchor bolts

Feed Material Form
Nutmeg Seeds (Cracked/Whole)

Batch Time
3-6 hours per cycle

Safety Features
Pressure release valve, temperature gauge, emergency shutdown

Operating Pressure
Atmospheric to 2 bar

Separator Material
Stainless Steel 304/316

Insulation
Glass wool/ceramic or mineral wool insulation

Condenser Type
Shell and tube or coiled type

Customizability
Available for different capacities and automation levels

Shell Thickness
4-6 mm stainless steel

Maintenance
Low, periodic cleaning & inspection

Cooling System
Water-cooled condenser unit

About Nutmeg Oil Steam Distillation Plant

Unlock blue-ribbon extraction with the Nutmeg Oil Steam Distillation Plant-engineered for superior, consistent results. Built from lustrous stainless steel and insulated with premium glass wool or mineral wool, this semi-automatic marvel boasts robust construction, energy efficiency, and corrosion resistance. Order today to enjoy exceptional savings and flexibility with customizable capacity (100-2000L/batch), advanced safety features, and low maintenance. Benefit from rapid batch times (3-6 hours), a water-cooled condenser, and an efficient separator. Unlock market value and streamline your production with innovation that endures.

Premium Material, Superior Application

Crafted from polished stainless steel (grades 304/316), this plant is designed for seamless essential oil extraction from cracked or whole nutmeg seeds. Its lustrous surface ensures easy cleaning and consistent operation, making it perfect for food, fragrance, and pharmaceutical industries. The robust device includes a variety of condenser types and reliable insulation, tailored for a sturdy, safe, and efficient oil extraction process. Order for personalized specifications and unlock superior performance in nutmeg oil production.

Main Export Markets and Ordering Insights

Order processing for the Nutmeg Oil Steam Distillation Plant ensures timely delivery and competitive market value. With export markets spanning Asia, Africa, the Middle East, and Europe, clients benefit from the lowest price offers and flexible payment terms such as T/T and L/C. The plant is shipped FOB from leading ports. Unlock seamless procurement and maximize your operational savings with every order placed through authorized exporters, fabricators, and suppliers.

FAQ's of Nutmeg Oil Steam Distillation Plant:

Q: How is the Nutmeg Oil Steam Distillation Plant operated and controlled?

A: This plant offers both manual and optional PLC-based control, paired with a semi-automatic operating grade. The process is managed using a user-friendly interface, allowing for streamlined monitoring and adjustments during each batch cycle.

Q: What safety features are included in the distillation plant?

A: Safety is prioritized with components like a pressure release valve, temperature gauge, and emergency shutdown system. The plant's construction includes reliable insulation and robust shell thickness, enhancing operational safety at atmospheric to 2 bar pressures.

Q: What is the specific usage of this plant?

A: It is designed for extracting high-quality essential oil from nutmeg seeds-either cracked or whole-via steam distillation. Applications include the food, fragrance, and pharmaceutical industries.

Q: When should routine maintenance be performed?

A: Routine maintenance involves periodic cleaning and inspection, ensuring optimal performance and longevity. The maintenance schedule depends on production frequency and batch size but is generally low and straightforward.

Q: Where can this distillation plant be installed and what is required?

A: Installation requires a leveled concrete foundation with anchor bolts, water and electrical supply connections, and basic civil work. It is suitable for factory floors, processing units, or even specialized laboratories depending on the selected batch capacity and market.
