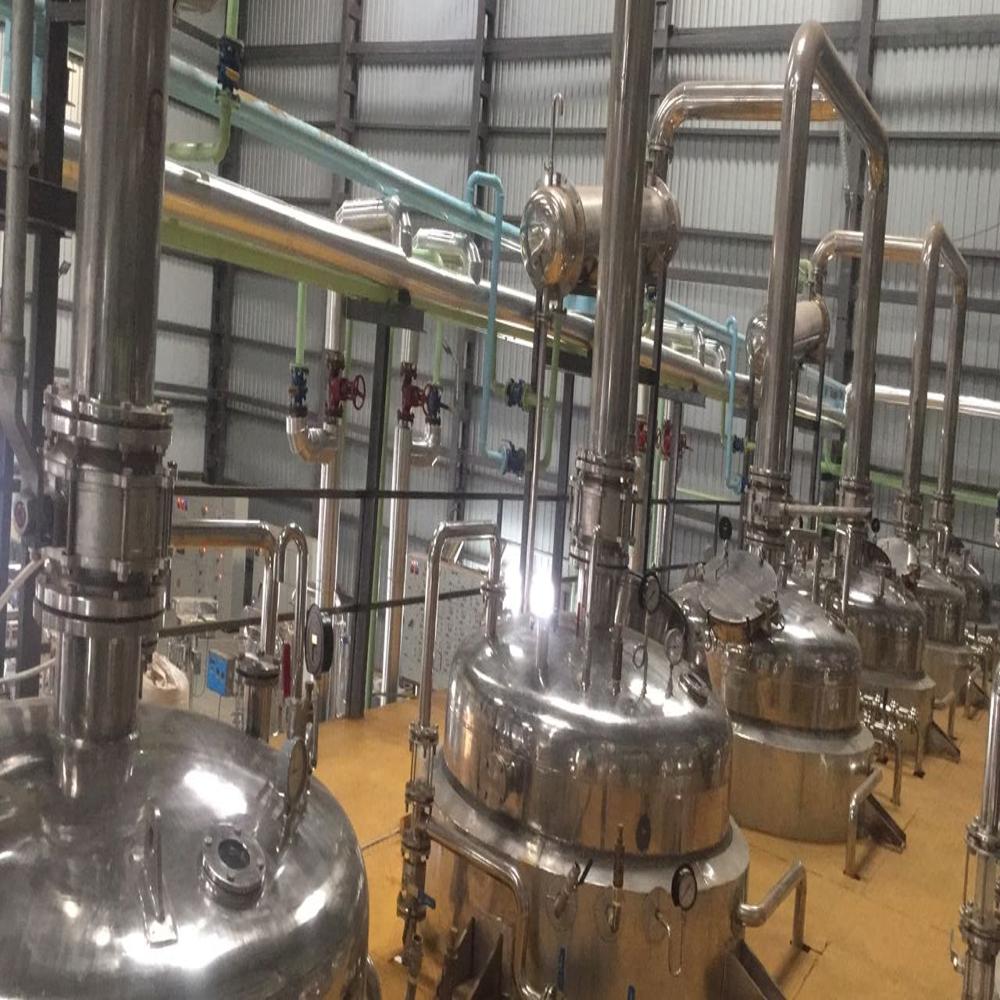

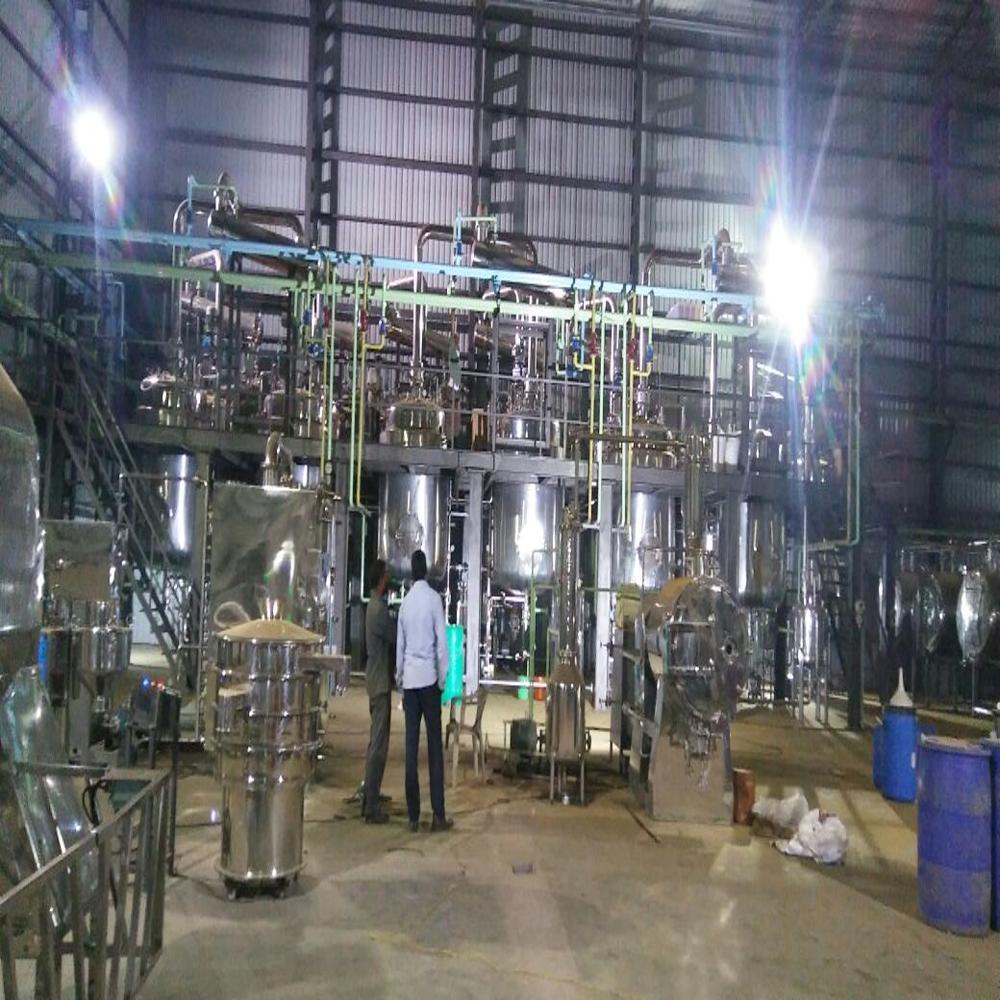

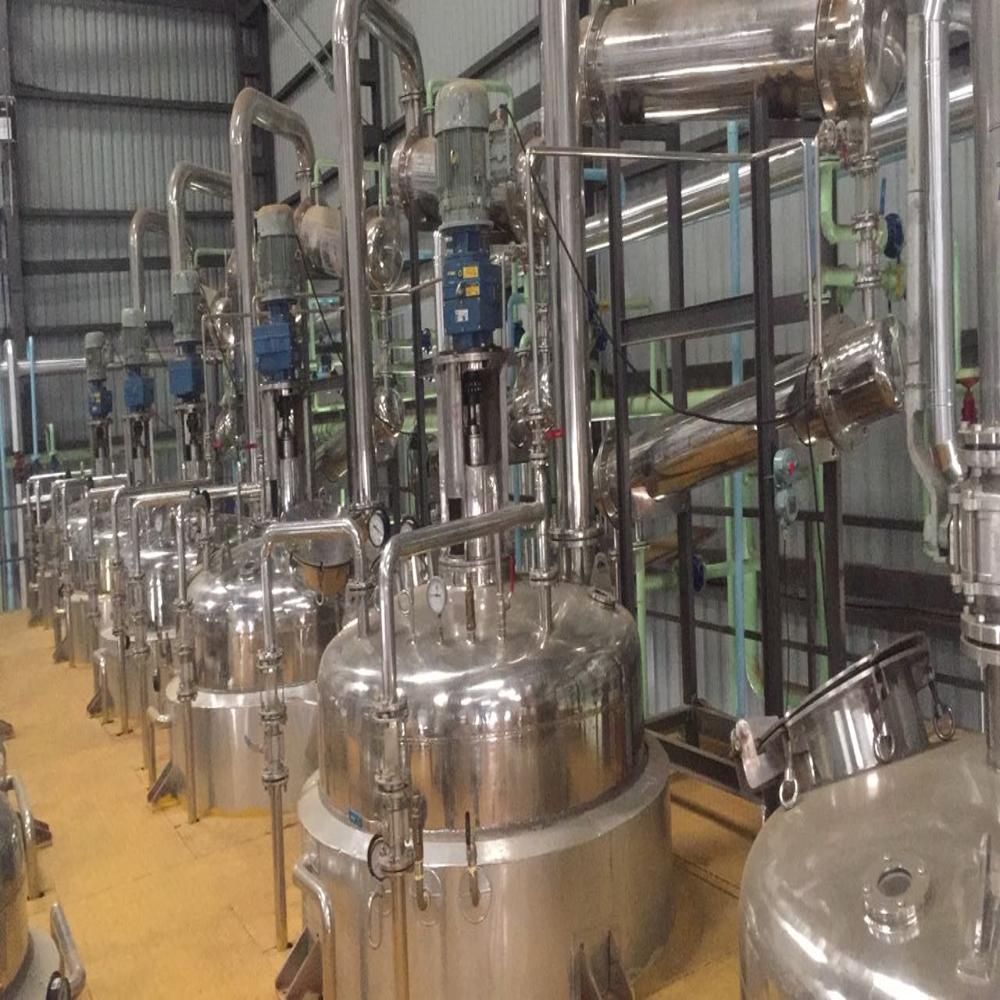

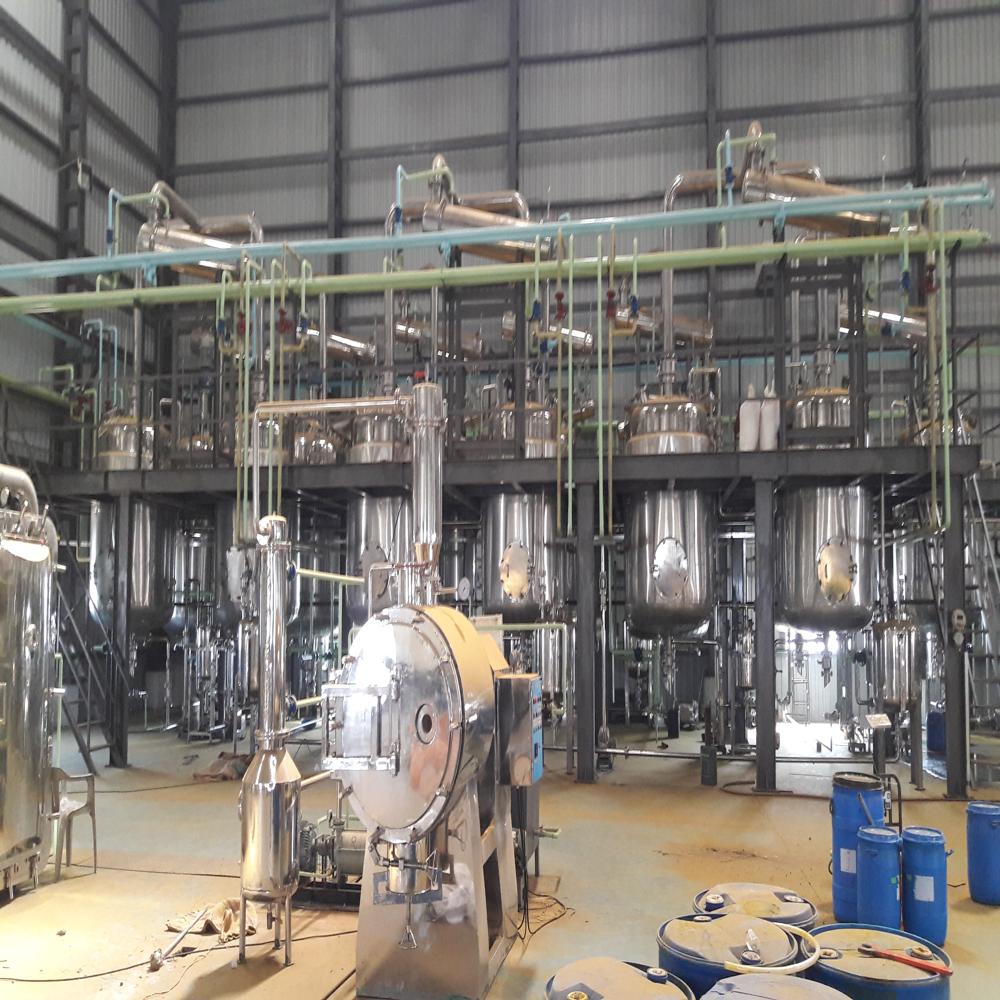

Nalleru(Cissus quadrangularis) Herbal Extraction Plant

Get a Price/Quote

Nalleru(Cissus quadrangularis) Herbal Extraction Plant Specification

Product Type
Nalleru (Cissus quadrangularis) Herbal Extraction Plant

General Use
Extraction of herbal compounds and actives from Cissus quadrangularis (Nalleru)

Material
Stainless Steel (SS 304/316 food and pharma grade)

Capacity
200-1000 kg/batch (scalable as per requirements)

Type
Automatic, Semi-automatic (customizable)

Weight (kg)
Approx. 10,000 - 30,000 kg (depends on configuration)

Computerized
Optional PLC/SCADA based automation

Automatic
Yes, optionally fully or semi-automatic

Control System
PLC based, Digital panel controls

Voltage
415 V, 3 Phase, 50 Hz (default for industrial setup)

Motor
Electric motor, 15-25 HP (depending on plant size)

Dimension (L*W*H)
Custom - typically 25m x 10m x 10m (as per plant size and capacity)

Feature
Continuous extraction, efficient solvent recovery, CIP (Clean-In-Place) system, GMP compliant design

Color
Steel Grey (Polished stainless steel)

Product Discharge
Automated collection tanks or barrels

Process Monitoring
Real-time sensors for temperature, pressure, and flow rate

Safety Features
Pressure relief valves, emergency shutdown switches, flameproof motors

Evaporation System
Vacuum evaporators for enhanced concentration and solvent recovery

Residue Handling
Automated residue discharge system

Utilities Required
Chilled water, steam generator, compressed air supply

Maintenance
Low-maintenance, with CIP in place for quick sanitization

Power Consumption
Approx. 150-250 kW, depending on capacity and automation level

Material Feeding
Screw feeder or automated conveyor for raw herb loading

Filtration System
Multi-stage filtration with mesh and micron cartridge options

Drying System
Spray dryer or vacuum tray dryer integration (optional)

Extraction Method
Solvent extraction (ethanol, methanol, or water as per requirement)

Installation & Commissioning
On-site technical support and training included

About Nalleru(Cissus quadrangularis) Herbal Extraction Plant

Explore the phenomenal efficiency of the Nalleru (Cissus quadrangularis) Herbal Extraction Plant-an ultimate solution designed for extracting top-rated herbal compounds and actives. Fabricated in high-grade stainless steel (SS 304/316), this latest system features versatile solvent extraction (ethanol, methanol, or water), multi-stage filtration, and smart process monitoring. Integrated vacuum evaporators ensure enlightened concentration control and solvent recovery, while spray or tray dryers (optional) perfect your final product. Customizable automation, robust safety controls, and low-maintenance, GMP-compliant operation redefine the standards in herbal extraction technology.

Competitive Edge and Superior Features

The Nalleru (Cissus quadrangularis) Herbal Extraction Plant boasts automated and semi-automatic options, giving users ultimate control over batch sizes ranging from 200 to 1000 kg. Its enlightened multi-stage filtration and vacuum evaporation optimize purity and yield. Real-time sensors ensure precise monitoring, while the clean-in-place (CIP) system and low-maintenance design offer unmatched convenience. The machine's adaptability, GMP compliance, and advanced safety features present top-tier advantages for fabricators, manufacturers, and exporters alike.

Packaging, Export Markets, and Payment Exchanges

Each plant is packed with the utmost care in industrial-grade steel grey units (custom dimensions), ensuring safe transit for both domestic and global exchanges. Main export markets include Asia, Europe, and North America, with tailored outlay solutions for clients. Payment terms are flexible to accommodate diverse business needs, supporting bank transfers, letters of credit, and verified online transactions, making the Nalleru Extraction Plant accessible to both local and international markets.

FAQ's of Nalleru(Cissus quadrangularis) Herbal Extraction Plant:

Q: How does the solvent extraction process work in the Nalleru Herbal Extraction Plant?

A: The plant uses ethanol, methanol, or water as solvents to extract bioactive compounds from Cissus quadrangularis. The process occurs in automated vessels with precise temperature and pressure controls for optimal yield.

Q: What benefits does the vacuum evaporation system provide?

A: Vacuum evaporators enhance concentration, reduce energy usage, and allow effective solvent recovery, resulting in a higher quality extract and more efficient processing.

Q: Where can the Nalleru Herbal Extraction Plant be installed?

A: The plant is suitable for installation in industrial facilities, herb processing units, or pharmaceutical manufacturing setups. On-site commissioning and technical training are provided for every installation.

Q: When is maintenance required, and how is it managed?

A: Minimal maintenance is necessary thanks to the clean-in-place (CIP) system. Regular sanitization is automated, and routine checks ensure long-term reliability.

Q: What safety measures are included with this extraction plant?

A: Safety is ensured through pressure relief valves, emergency shutdown switches, and flameproof motors. These features protect both operators and equipment during every stage of production.
